E350 4MATIC Wagon
Vehicle type
- Four-door, seven-passenger wagon
- Chassis Steel unibody
- Internal Combustion Engine 90-degree V6
- Valve arrangement Four valves per cylinder
- Valvetrain Double overhead camshaft, duplex chain-driven
- Displacement (cc) 3,498
- Bore (in./mm) 3.65 / 92.6
- Stroke (in./mm) 3.39 / 86.0
- Compression ratio 10.7:1
- Horsepower @ rpm 268 @ 6,000
- Torque (lb-ft.) @ rpm 258 @ 2,400 – 5,000
- Intake system Magnesium two-stage resonance intake manifold
- Max. engine speed (rpm) 6,500
- Transmission Seven-speed automatic
- Shift controls Direct Select
- Gear ratios Automatic
1 4.38
2 2.86
3 1.92
4 1.37
5 1
6 0.82
7 0.73
R -3.42
R2 "comfort mode" -2.23
Final drive 3.07
Stability control
- ESP stability control
- Suspension Four-wheel independent; front coil springs, stabilizer bars, rear airsprings Independent wheel suspension, coiled spring, torsion bar, 3-link wheel control/axle location
Independent wheel suspension, coiled spring, tubular torsion bar, multi-link steering - Steering Rack-and-pinion, speed sensitive hydraulic power steering
- Turns, lock-to-lock TBD
- Steering ratio TBD
- Turning radius (ft.) TBD
Performance
- 0-60 (seconds) TBD
- Top speed (mph) 130
- Fuel mileage, city/hwy 16 / 23
Fuel Mileage
- Divertrain 7-spd Automatic
- City 16
- Highway 23
- Combined 19
Price
- 2011
$57,075 - 2010
$58,125 (MY ’09)

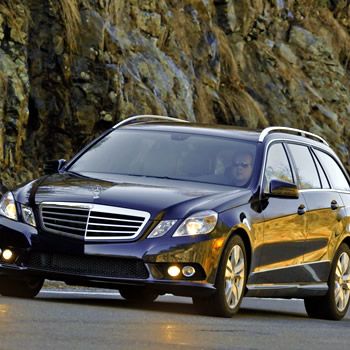

2011 Mercedes-Benz E350 4MATIC Wagon with detail and image gallery.
